TP-LINK 845N V1硬改16M Flash,64M RAM,刮U刷OpenWRT
TP-LINK 845N V1与TP-LINK 841N V8硬件部分基本一样，差别在于Flash、RAM容量。手头的TP-LINK 845N V1的Flash是2M的Winbond 25Q16BVSIG，RAM是16M的Zentel A3S28D40FTP-G5。平常运行不算稳定，特别夏天的时候无线很容易挂掉。学了一段时间OpenWRT以后决定对路由器进行软硬件方面的修改。硬件方面把RAM换成64M的HY5DU121622DTP-D43，Flash换成16M的MX25L12835F，引出USB接口，USB供电使用LM2596可调降压模块。软件方面自己ubuntu下修改编译支持845N V1的OpenWRT固件。
一、硬改部分

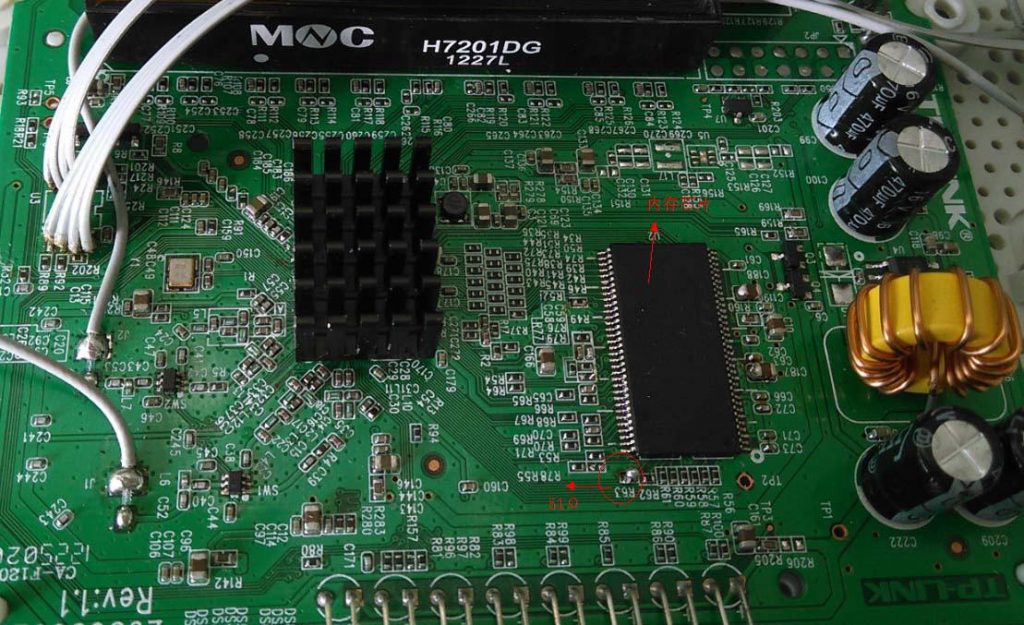

先换内存，换上以后再测试是否还能正常启动，如果不能正常启动有可能是内存芯片没焊好，还有可能是电路板少了R63这颗贴片电阻。因当时焊了几次内存都不行，google了下845N V1的拆机图，跟图对比的下发现少了R63这个电阻，阻值不清楚，参考R62阻值51Ω，焊到R63上，结果开机OK。（手头的贴片电阻没那么小的，用了一个大一点点的贴片电阻+0Ω电阻立起来焊接），如下图：
内存换成功以后，就可以开始换Flash。先拆掉原来的flash芯片，用CH341A编程器读出原有的固件。目的是要得到art无线校正数据。为了无线能正常工作，art数据是必须的，art数据在原固件的最后64KiB部分。然后编译出来的uboot、openwrt factory固件、art数据合成一个完整的16MiB的编程器固件（uboot、openwrt编译以及合并成编程器固件见第二部分），用编程器刷入flash芯片换上。正常无误的话上电就能启动openwrt系统了。

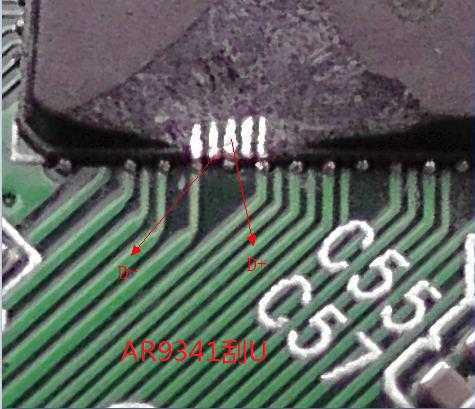

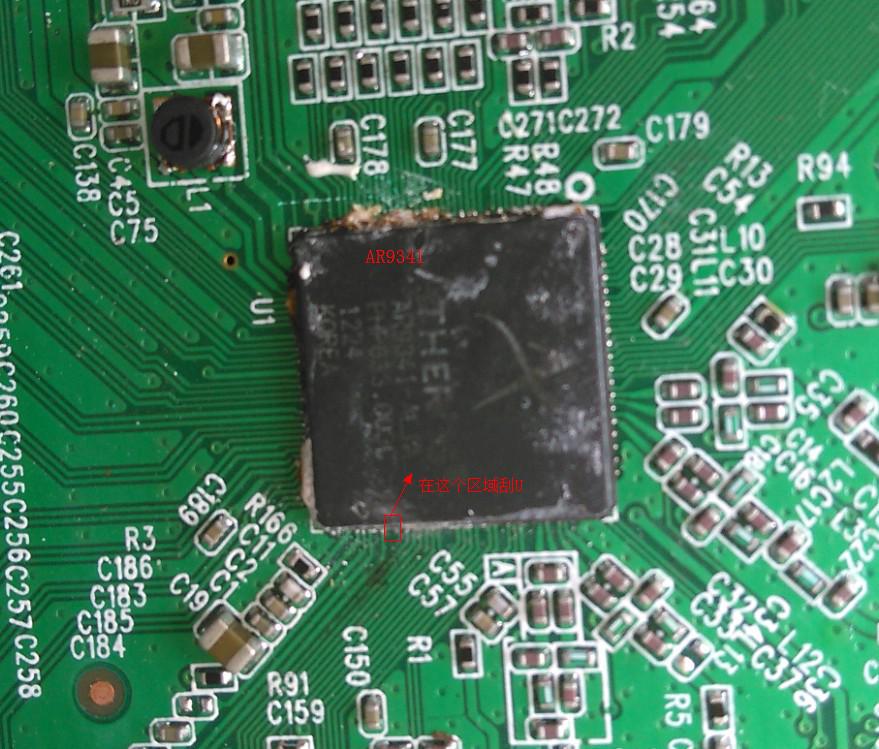

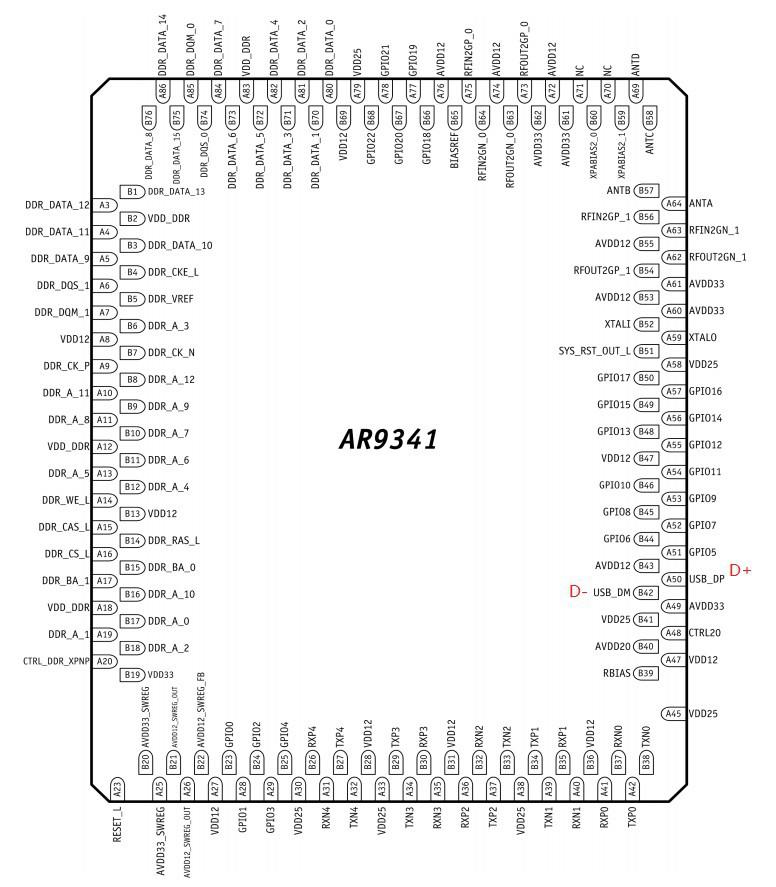

接着就是刮出USB的D+、D-引线。取下散热片。845N V1用的CPU是AR9341。查datasheet和网络上找的图，确定usb引脚的位置，如下图：

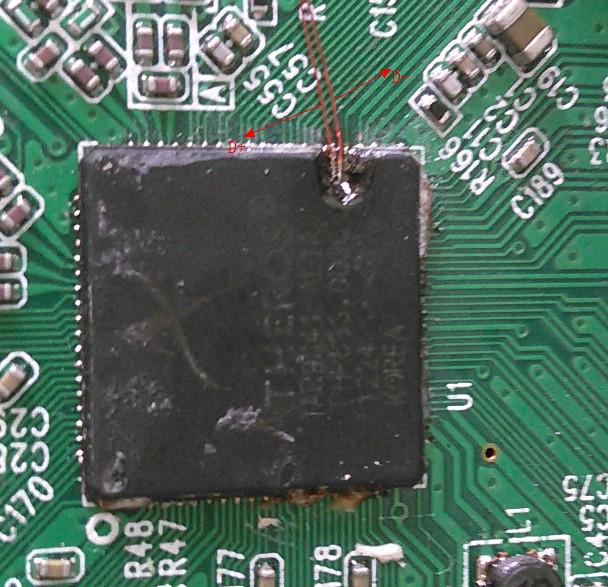

用美工刀慢慢的刮，本人第一次刮没什么经验，花了2个钟头才刮好。挖开后，用0.1毫米的漆包线焊接，将D+、D-引出。注意：引脚非常小，焊完用万用表量下是否短路或者是否有焊接上。D+、D-跟D-旁边那根线间电阻，本人量的下貌似都是几兆欧。

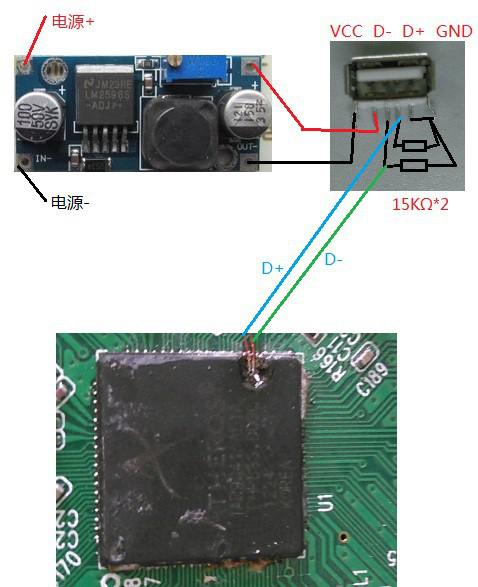

引出usb数据线后，接上LM2596电源模块和USB母口，USB母口的外壳接地，调整usb电源模块输出5V。接线图如下：

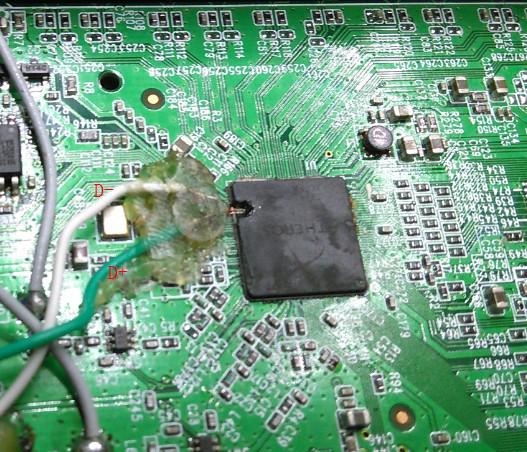

usb的D+、D-引出后，换好点的粗线，然后热熔胶粘上：

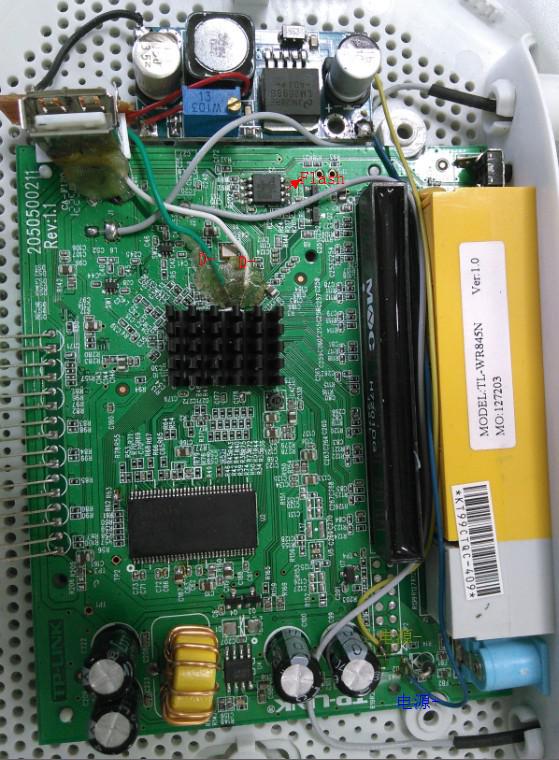

最后整体图：
接线都完成后，上电待系统启动完成，ssh登录路由。插上u盘，ls /dev看看有没有识别到u盘。也可以用dmesg命令查看内核调试信息，这之中就有会有跟usb相关的信息。
二、软改部分
OpenWRT没有原生支持TP-LINK 845N V1，只因Flash、RAM太小了。因此软件部分必须自己修改编译。从svn co svn://svn.openwrt.org/openwrt/trunk/下载源码。版本r40804。2014年5月21日下载好的。
2.1、修改target/linux/ar71xx/generic/profiles/tp-link.mk，找到$(eval $(call Profile,TLWR842))，在此之下添加：
|
1 2 3 4 5 6 7 8 9 |
define Profile/TLWR845 NAME:=TP-LINK TL-WR845N PACKAGES:=kmod-usb-core kmod-usb2 kmod-ledtrig-usbdev endef define Profile/TLWR845/Description Package set optimized for the TP-LINK TL-WR845N. endef $(eval $(call Profile,TLWR845)) |
2.2、修改target/linux/ar71xx/base-files/lib/ar71xx.sh，找到
|
1 2 3 |
"084200"*) model="TP-Link TL-WR842N/ND" ;; |
在此之下添加：
|
1 2 3 |
"084500"*) model="TP-Link TL-WR845N" ;; |
再找到：
|
1 2 3 |
*"TL-WR842N/ND v2") name="tl-wr842n-v2" ;; |
在此之下添加：
|
1 2 3 |
*"TL-WR845N v1") name="tl-wr845n-v1" ;; |
2.3、修改target/linux/ar71xx/base-files/lib/upgrade/platform.sh，找到
|
1 2 3 |
tl-wr841n-v8 | \ tl-wr841n-v9 | \ tl-wr842n-v2 | \ |
在此之下添加：
|
1 |
tl-wr845n-v1 | \ |
2.4、修改arget/linux/ar71xx/base-files/etc/uci-defaults/01_leds，找到
|
1 2 |
tl-wa801nd-v2 | \ tl-wa901nd-v3) |
在此之上（是这之上），添加
|
1 2 3 4 5 6 7 8 9 |
tl-wr845n-v1) ucidef_set_led_netdev "wan" "WAN" "tp-link:green:wan" "eth0" ucidef_set_led_switch "lan1" "LAN1" "tp-link:green:lan1" "switch0" "0x02" ucidef_set_led_switch "lan2" "LAN2" "tp-link:green:lan2" "switch0" "0x04" ucidef_set_led_switch "lan3" "LAN3" "tp-link:green:lan3" "switch0" "0x08" ucidef_set_led_switch "lan4" "LAN4" "tp-link:green:lan4" "switch0" "0x10" ucidef_set_led_wlan "wlan" "WLAN" "tp-link:green:wlan" "phy0tpt" ucidef_set_led_usbdev "usb" "USB" "tp-link:green:qss" "1-1" ;; |
注：这里用845N V1的QSS那个灯（就是最后一个锁标志的那个）来当USB的指示灯。因刷openwrt后qss灯基本没有用处，因此可以当usb指示灯用。另外lan1、lan2、lan3、lan4的端口顺序依次是0x02、0x04、0x08、0x10，否则导致led灯与路由器后面的wan、lan口对应不上。部分信息可参看后面的mach-tl-wr845n-v1.c文件。
2.5、修改target/linux/ar71xx/base-files/etc/uci-defaults/02_network，找到
|
1 2 3 |
tl-mr3420-v2 |\ tl-wr841n-v8 |\ tl-wr842n-v2 |\ |
在此之下添加
|
1 |
tl-wr845n-v1 |\ |
2.6、修改target/linux/ar71xx/base-files/etc/diag.sh，找到
|
1 2 3 |
tl-wr841n-v7 | \ tl-wr841n-v8 | \ tl-wr842n-v2 | \ |
在此之下添加
|
1 |
tl-wr845n-v1 | \ |
2.7、修改target/linux/ar71xx/image/Makefile，找到
|
1 2 3 |
$(eval $(call SingleProfile,TPLINK-LZMA,64kraw,TLWR841NV8,tl-wr841n-v8,TL-WR841N-v8,ttyS0,115200,0x08410008,1,4Mlzma)) $(eval $(call SingleProfile,TPLINK-LZMA,64kraw,TLWR841NV9,tl-wr841n-v9,TL-WR841N-v9,ttyS0,115200,0x08410009,1,4Mlzma)) $(eval $(call SingleProfile,TPLINK-LZMA,64kraw,TLWR842V2,tl-wr842n-v2,TL-WR842N-v2,ttyS0,115200,0x8420002,1,8Mlzma)) |
在此之下添加
|
1 |
$(eval $(call SingleProfile,TPLINK-LZMA,64kraw,TLWR845V1,tl-wr845n-v1,TL-WR845N-v1,ttyS0,115200,0x8450001,1,16Mlzma)) |
注：因使用的是16M的Flash，所以是16Mlzma。然后再找到
|
1 2 3 |
$(eval $(call MultiProfile,TLWR743,TLWR743NV1 TLWR743NV2)) $(eval $(call MultiProfile,TLWR841,TLWR841NV15 TLWR841NV3 TLWR841NV5 TLWR841NV7 TLWR841NV8 TLWR841NV9)) $(eval $(call MultiProfile,TLWR842,TLWR842V1 TLWR842V2)) |
在此之下添加
|
1 |
$(eval $(call MultiProfile,TLWR845,TLWR845V1)) |
2.8、修改target/linux/ar71xx/base-files/lib/preinit/05_set_preinit_iface_ar71xx，找到
|
1 2 3 |
tl-wr720n-v3 |\ tl-wr841n-v8 |\ tl-wr842n-v2 |\ |
在此之下添加
|
1 |
tl-wr845n-v1 |\ |
2.9、修改target/linux/ar71xx/config-3.10，找到
|
1 2 3 |
CONFIG_ATH79_MACH_TL_WR841N_V1=y CONFIG_ATH79_MACH_TL_WR841N_V8=y CONFIG_ATH79_MACH_TL_WR841N_V9=y |
在此之下添加
|
1 |
CONFIG_ATH79_MACH_TL_WR845N_V1=y |
2.10、在target/linux/ar71xx/files/arch/mips/ath79/下新建文件mach-tl-wr845n-v1.c，文件内容如下：
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 |
/* * TP-LINK TL-WR845N v1 board support * * Copyright (C) 2012 Gabor Juhos <[email protected]> * * This program is free software; you can redistribute it and/or modify it * under the terms of the GNU General Public License version 2 as published * by the Free Software Foundation. */ #include <linux/gpio.h> #include <linux/platform_device.h> #include <asm/mach-ath79/ath79.h> #include <asm/mach-ath79/ar71xx_regs.h> #include "common.h" #include "dev-eth.h" #include "dev-gpio-buttons.h" #include "dev-leds-gpio.h" #include "dev-m25p80.h" #include "dev-usb.h" #include "dev-wmac.h" #include "machtypes.h" #define TL_WR845NV1_GPIO_LED_WLAN 13 #define TL_WR845NV1_GPIO_LED_QSS 15 #define TL_WR845NV1_GPIO_LED_WAN 18 #define TL_WR845NV1_GPIO_LED_LAN1 19 #define TL_WR845NV1_GPIO_LED_LAN2 20 #define TL_WR845NV1_GPIO_LED_LAN3 21 #define TL_WR845NV1_GPIO_LED_LAN4 12 #define TL_WR845NV1_GPIO_LED_SYSTEM 14 #define TL_WR845NV1_GPIO_BTN_RESET 17 #define TL_WR845NV1_GPIO_SW_RFKILL 16 /* WPS for MR3420 v2 */ #define TL_MR3420V2_GPIO_LED_3G 11 #define TL_MR3420V2_GPIO_USB_POWER 4 #define TL_WR845NV1_KEYS_POLL_INTERVAL 20 /* msecs */ #define TL_WR845NV1_KEYS_DEBOUNCE_INTERVAL (3 * TL_WR845NV1_KEYS_POLL_INTERVAL) static const char *tl_wr845n_v1_part_probes[] = { "tp-link", NULL, }; static struct flash_platform_data tl_wr845n_v1_flash_data = { .part_probes = tl_wr845n_v1_part_probes, }; static struct gpio_led tl_wr845n_v1_leds_gpio[] __initdata = { { .name = "tp-link:green:lan1", .gpio = TL_WR845NV1_GPIO_LED_LAN1, .active_low = 1, }, { .name = "tp-link:green:lan2", .gpio = TL_WR845NV1_GPIO_LED_LAN2, .active_low = 1, }, { .name = "tp-link:green:lan3", .gpio = TL_WR845NV1_GPIO_LED_LAN3, .active_low = 1, }, { .name = "tp-link:green:lan4", .gpio = TL_WR845NV1_GPIO_LED_LAN4, .active_low = 1, }, { .name = "tp-link:green:qss", .gpio = TL_WR845NV1_GPIO_LED_QSS, .active_low = 1, }, { .name = "tp-link:green:system", .gpio = TL_WR845NV1_GPIO_LED_SYSTEM, .active_low = 1, }, { .name = "tp-link:green:wan", .gpio = TL_WR845NV1_GPIO_LED_WAN, .active_low = 1, }, { .name = "tp-link:green:wlan", .gpio = TL_WR845NV1_GPIO_LED_WLAN, .active_low = 1, } }; static struct gpio_keys_button tl_wr845n_v1_gpio_keys[] __initdata = { { .desc = "Reset button", //QSS/RESET按钮 .type = EV_KEY, .code = KEY_RESTART, .debounce_interval = TL_WR845NV1_KEYS_DEBOUNCE_INTERVAL, .gpio = TL_WR845NV1_GPIO_BTN_RESET, .active_low = 1, } }; static void __init tl_ap123_setup(void) { u8 *mac = (u8 *) KSEG1ADDR(0x1f01fc00); u8 *ee = (u8 *) KSEG1ADDR(0x1fff1000); /* Disable JTAG, enabling GPIOs 0-3 */ /* Configure OBS4 line, for GPIO 4*/ ath79_gpio_function_setup(AR934X_GPIO_FUNC_JTAG_DISABLE, AR934X_GPIO_FUNC_CLK_OBS4_EN); /* config gpio4 as normal gpio function */ ath79_gpio_output_select(TL_MR3420V2_GPIO_USB_POWER, AR934X_GPIO_OUT_GPIO); ath79_register_m25p80(&tl_wr845n_v1_flash_data); ath79_setup_ar934x_eth_cfg(AR934X_ETH_CFG_SW_ONLY_MODE); //改AR934X_ETH_CFG_SW_PHY_SWAP为AR934X_ETH_CFG_SW_ONLY_MODE ath79_register_mdio(1, 0x0); ath79_init_mac(ath79_eth0_data.mac_addr, mac, -1); ath79_init_mac(ath79_eth1_data.mac_addr, mac, 0); /* GMAC0 is connected to the PHY0 of the internal switch */ //修正lan1会变成wan，lan2变成lan1，wan口变成lan4的问题。 ath79_switch_data.phy4_mii_en = 1; ath79_switch_data.phy_poll_mask = BIT(4); ath79_eth0_data.phy_if_mode = PHY_INTERFACE_MODE_MII; ath79_eth0_data.phy_mask = BIT(4); ath79_eth0_data.mii_bus_dev = &ath79_mdio1_device.dev; ath79_register_eth(0); /* GMAC1 is connected to the internal switch */ ath79_eth1_data.phy_if_mode = PHY_INTERFACE_MODE_GMII; ath79_register_eth(1); ath79_register_wmac(ee, mac); } static void __init tl_wr845n_v1_setup(void) { tl_ap123_setup(); ath79_register_leds_gpio(-1, ARRAY_SIZE(tl_wr845n_v1_leds_gpio), tl_wr845n_v1_leds_gpio); ath79_register_gpio_keys_polled(1, TL_WR845NV1_KEYS_POLL_INTERVAL, ARRAY_SIZE(tl_wr845n_v1_gpio_keys), tl_wr845n_v1_gpio_keys); /* enable power for the USB port */ gpio_request_one(TL_MR3420V2_GPIO_USB_POWER, GPIOF_OUT_INIT_HIGH | GPIOF_EXPORT_DIR_FIXED, "USB power"); ath79_register_usb(); //加上，我们要usb功能 } MIPS_MACHINE(ATH79_MACH_TL_WR845N_V1, "TL-WR845N-v1", "TP-LINK TL-WR845N v1", tl_wr845n_v1_setup); |
2.11、修改tools/firmware-utils/src/mktplinkfw.c，添加“HWID_TL_WR845N_V1”宏定义，然后将16M的布局中的fw_max_len都改成0xfc0000，如下所示：
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 |
#define HWID_TL_WR845N_V1 0x08450001 }, { .id = "16M", .fw_max_len = 0xfc0000, .kernel_la = 0x80060000, .kernel_ep = 0x80060000, .rootfs_ofs = 0x140000, }, { .id = "16Mlzma", .fw_max_len = 0xfc0000, .kernel_la = 0x80060000, .kernel_ep = 0x80060000, .rootfs_ofs = 0x100000, }, { .id = "16Mppc", .fw_max_len = 0xfc0000, .kernel_la = 0x00000000, .kernel_ep = 0xc0000000, .rootfs_ofs = 0x2a0000, }, { /* terminating entry */ } |
然后再在boards数组中找到
|
1 2 3 4 |
{ .id = "TL-WR941NDv2", .hw_id = HWID_TL_WR941ND_V2, .hw_rev = 2, |
在此之上（注：之上）添加一条845Nv1相关部分的代码，修改后如下：
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 |
}, { .id = "TL-WR841NDv7", .hw_id = HWID_TL_WR841ND_V7, .hw_rev = 1, .layout_id = "4M", }, { .id = "TL-WR845Nv1", .hw_id = HWID_TL_WR845N_V1, .hw_rev = 1, .layout_id = "16Mlzma", }, { .id = "TL-WR941NDv2", .hw_id = HWID_TL_WR941ND_V2, .hw_rev = 2, .layout_id = "4M", }, { |
2.12、在target/linux/ar71xx/patches-3.10/下创建文件999-MIPS-ath79-add-845nv1-support.patch，文件内容如下：
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 |
--- a/arch/mips/ath79/Kconfig 2014-05-29 10:36:56.000000000 +0800 +++ b/arch/mips/ath79/Kconfig 2014-05-30 09:08:42.699124426 +0800 @@ -725,6 +725,16 @@ select ATH79_DEV_M25P80 select ATH79_DEV_WMAC +config ATH79_MACH_TL_WR845N_V1 + bool "TP-LINK TL-WR845N v1 support" + select SOC_AR934X + select ATH79_DEV_ETH + select ATH79_DEV_GPIO_BUTTONS + select ATH79_DEV_LEDS_GPIO + select ATH79_DEV_M25P80 + select ATH79_DEV_USB + select ATH79_DEV_WMAC + config ATH79_MACH_TL_WR941ND bool "TP-LINK TL-WR941ND support" select SOC_AR913X --- a/arch/mips/ath79/machtypes.h 2014-05-29 10:36:56.000000000 +0800 +++ b/arch/mips/ath79/machtypes.h 2014-05-30 09:10:35.431127534 +0800 @@ -126,6 +126,7 @@ ATH79_MACH_TL_WR841N_V8, /* TP-LINK TL-WR841N/ND v8 */ ATH79_MACH_TL_WR841N_V9, /* TP-LINK TL-WR841N/ND v9 */ ATH79_MACH_TL_WR842N_V2, /* TP-LINK TL-WR842N/ND v2 */ + ATH79_MACH_TL_WR845N_V1, /* TP-LINK TL-WR845N v1 */ ATH79_MACH_TL_WR941ND, /* TP-LINK TL-WR941ND */ ATH79_MACH_UBNT_AIRROUTER, /* Ubiquiti AirRouter */ ATH79_MACH_UBNT_BULLET_M, /* Ubiquiti Bullet M */ --- a/arch/mips/ath79/Makefile 2014-05-29 10:36:56.000000000 +0800 +++ b/arch/mips/ath79/Makefile 2014-05-30 09:18:14.711140199 +0800 @@ -101,6 +101,7 @@ obj-$(CONFIG_ATH79_MACH_TL_WR841N_V1) += mach-tl-wr841n.o obj-$(CONFIG_ATH79_MACH_TL_WR841N_V8) += mach-tl-wr841n-v8.o obj-$(CONFIG_ATH79_MACH_TL_WR841N_V9) += mach-tl-wr841n-v9.o +obj-$(CONFIG_ATH79_MACH_TL_WR845N_V1) += mach-tl-wr845n-v1.o obj-$(CONFIG_ATH79_MACH_TL_WR941ND) += mach-tl-wr941nd.o obj-$(CONFIG_ATH79_MACH_TL_WR1041N_V2) += mach-tl-wr1041n-v2.o obj-$(CONFIG_ATH79_MACH_TL_WR1043ND) += mach-tl-wr1043nd.o |
至此文件都修改完成。make menuconfig，对编译前进行配置。
三、制作编程器固件
拷贝uboot_for_tp-link_tl-wr841n_v8.bin为uboot.bin并用0xFF填充成128KiB大小。在0x1fc00处填入6字节原路由器的mac地址。在0x1fd00处填入8字节数据08 45 00 01 00 00 00 01。在0x1fe00处填入原路由的pin码字符串（8字节）。845n v1的编程器固件=uboot.bin(128k)+openwrt-ar71xx-generic-tl-wr845n-v1-squashfs-factory.bin(16128k)+64k的0xFF填充+64k原路由的art，得到的固件刚好16M，直接用编程器烧录Flash芯片。
